SNT Visual Safety Systems Application Engineering
Industrial Visual Safety Hardware

Product Archive & Specification Catalog

Browse optical projection units, laser/LED line generators, and crane safety visual devices. Configurations are matched to mounting height, ambient lux, and industrial floor conditions.

Filtering optical catalog parameters...

Showing 12 Validated Product Configurations

GRID VIEW | PAGE 1 OF 2
80W Virtual Sign Projector Series
SNT-VS80
Virtual Safety Marking IP65 Certified

80W Virtual Sign Projector Series

Rated Power 80W
Distance 3-10M
Beam / Optics Standard / Wide
Voltage AC100-240V
Pilot Ready Specs & Diagram
300W Virtual Sign Projector Series
SNT-VS300
Virtual Sign Projectors IP65 Certified

300W Virtual Sign Projector Series

Rated Power 300W
Distance 10-15M
Beam / Optics Standard / Wide
Voltage AC100-240V
Pilot Ready Specs & Diagram
150W Virtual Sign Projector Series
SNT-VS150
Virtual Sign Projectors IP65 Certified

150W Virtual Sign Projector Series

Rated Power 150W
Distance 3-10M
Beam / Optics Standard / Wide
Voltage AC100-240V
Pilot Ready Specs & Diagram

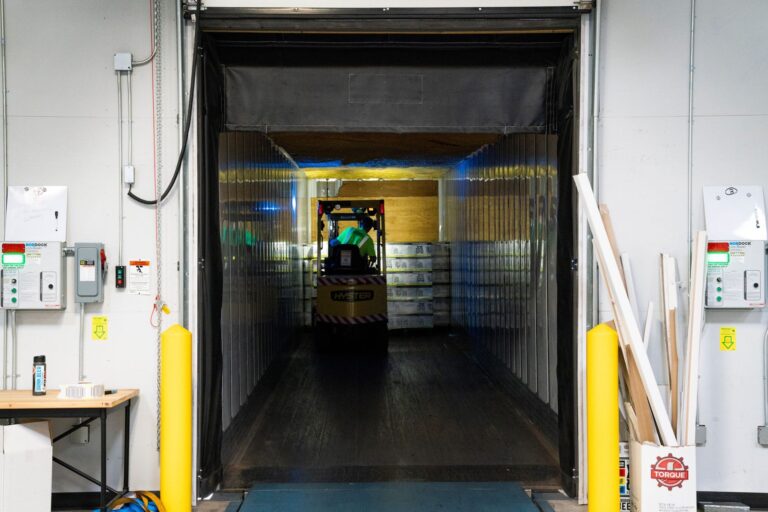

Laser Truck Docking Guidance System
SNT-DOCK-LASER
Alignment & Docking Systems IP65 Certified

Laser Truck Docking Guidance System

Rated Power 1200mw
Distance 3-15 m
Beam / Optics Standard / Wide
Voltage 9-80V
Pilot Ready Specs & Diagram
AI Collision Avoidance System
SNT-AI-CAS
AI Collision Avoidance Systems IP65 Certified

AI Collision Avoidance System

Rated Power 72w/120w
Distance 3-10M
Beam / Optics 45°
Voltage 12-24VDC
Pilot Ready Specs & Diagram
UWB Proximity Detection System
SNT-UWB-PDS
UWB Proximity Detection Systems IP65 Certified

UWB Proximity Detection System

Rated Power 10W
Distance 3-5M
Beam / Optics 45°
Voltage 12-24VDC
Pilot Ready Specs & Diagram
Forklift Safety Line Light Series
SNT-FL-LINE
Forklift Safety Lights IP65 Certified

Forklift Safety Line Light Series

Rated Power 18W
Distance 3-5M
Beam / Optics 45°
Voltage 12-24VDC
Pilot Ready Specs & Diagram
Crane LED Line Warning Light Series
SNT-CRANE-LINE
Crane Safety Lights IP65 Certified

Crane LED Line Warning Light Series

Rated Power 1200MW
Distance 3-10M
Beam / Optics 30°/45°/60°/90°/110°
Voltage 9-80V
Pilot Ready Specs & Diagram
Laser Safety Line Projector Series
SNT-LINE-LASER
Safety Line Projectors IP65 Certified

Laser Safety Line Projector Series

Rated Power 1000MW
Distance 3-10M
Beam / Optics 30°/45°/60°/90°/110°
Voltage 9-80V
Pilot Ready Specs & Diagram
Pilot Validation Protocol

Need configuration verification for your specific site conditions?

Send ambient lux, mounting height, and target projection diameter. SNT provides lens calculations and risk-based pilot units before bulk deployment.

Submit Site Data

Application Engineering Architecture

Configured Around Your Site. Not a generic catalog.

Visual safety projection depends on the interaction between Lux, Throw Distance, Floor Surface, and Trigger Logic. We turn physical plant constraints into validated optical deployment.

Standard 6-Phase Validation Method
01 DIAGNOSIS

1. Site & Conflict Risk Audit

We identify exact conflict geometry--blind corners, forklift crossings, crane swing zones, or worn floor tape areas where operators need visual warnings.

Key Parameters Captured

Traffic Flow Risk Geometry Floor Surface
02 CALCULATION

2. Optical Parameter Modeling

Calculation of throw distance, beam focal ratio, and required target lux to guarantee high-contrast visibility against high ambient workshop lighting.

Calculation Deliverables

Mounting (3-15m) Beam Ratio ≤ 600 Lux Match
03 HARDWARE

3. Hardware & Trigger Matching

Selection of LED/Laser output wattage, optical lens angle, sign Gobo pattern, and smart trigger interface (microradar, proximity sensor, PLC, or flashing I/O).

Configured Modules

Virtual Sign/Line Radar / Sensor I/O IP65 Bracket
04 PILOT VALIDATION

4. Risk-Based Pilot Test

For new facilities or challenging ambient conditions, 1-2 test units are deployed to collect real on-floor visibility data, operator reaction, and contrast evidence.

Validation Decision

Field PASS / Modify LOW RISK
05 CUSTOMIZATION

5. OEM & Custom Engineering

Custom Gobo engraving (ISO symbols, dual-color icons, text), custom brackets, voltage adaptations, and private label packaging for systems integrators.

OEM Capabilities

Custom Gobo Private Label CE / EMC Docs
06 REPLICATION

6. Scalable Multi-Site Rollout

Once pilot parameters are locked, we standardize BOM configurations for bulk procurement across multiple factory bays, distribution centers, or dealer networks.

Deployment Output

Standardized Spec Bulk Supply Distributor Tier
Engineering Rule & Responsibility Boundary

SNT manufactures visual warning hardware and assists in optical parameter sizing. Projected signs reinforce site traffic management and do not replace physical barriers, safety interlocks, or required EHS statutory obligations.
