SERIES: MXC24
PILOT READY
Industrial Projection Hardware

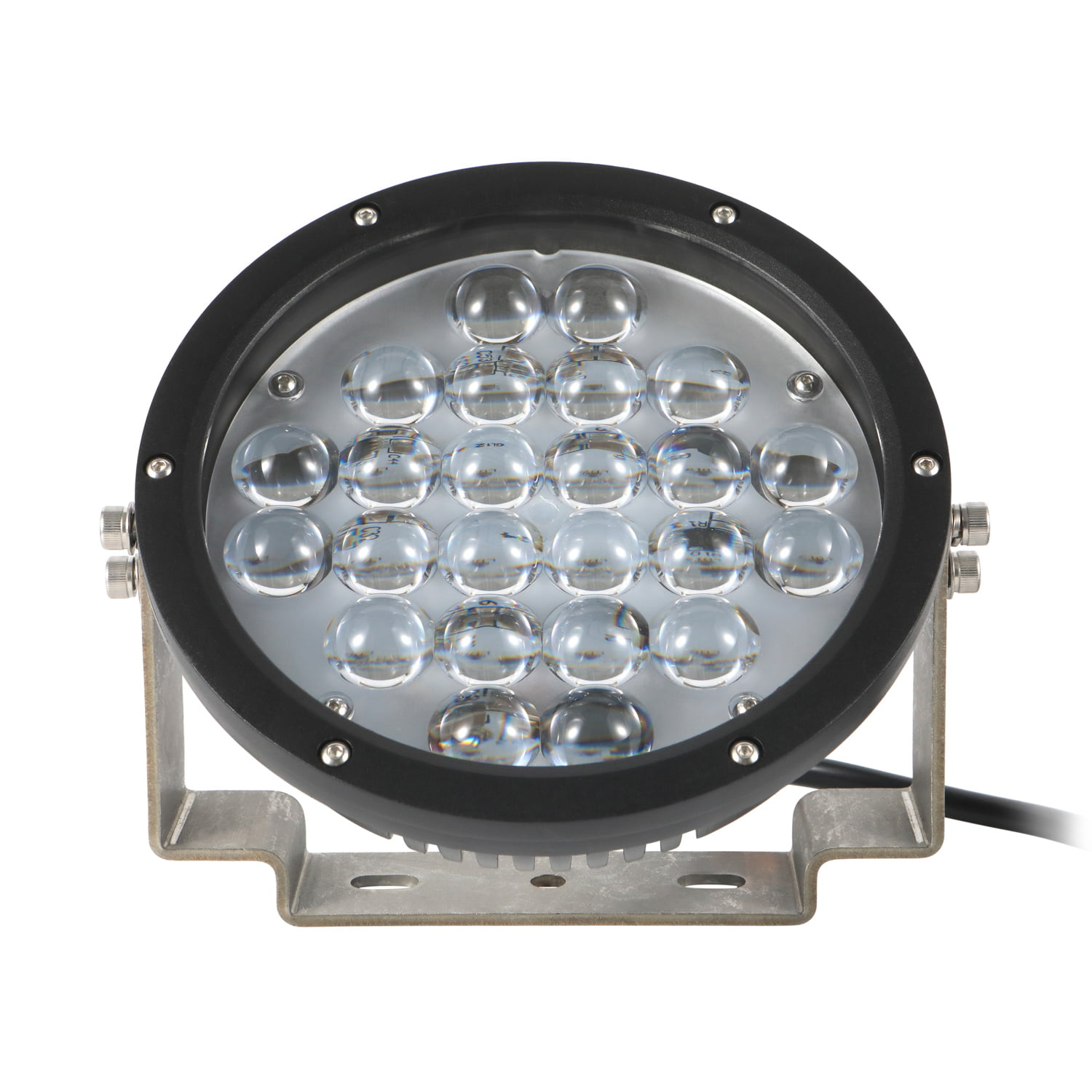

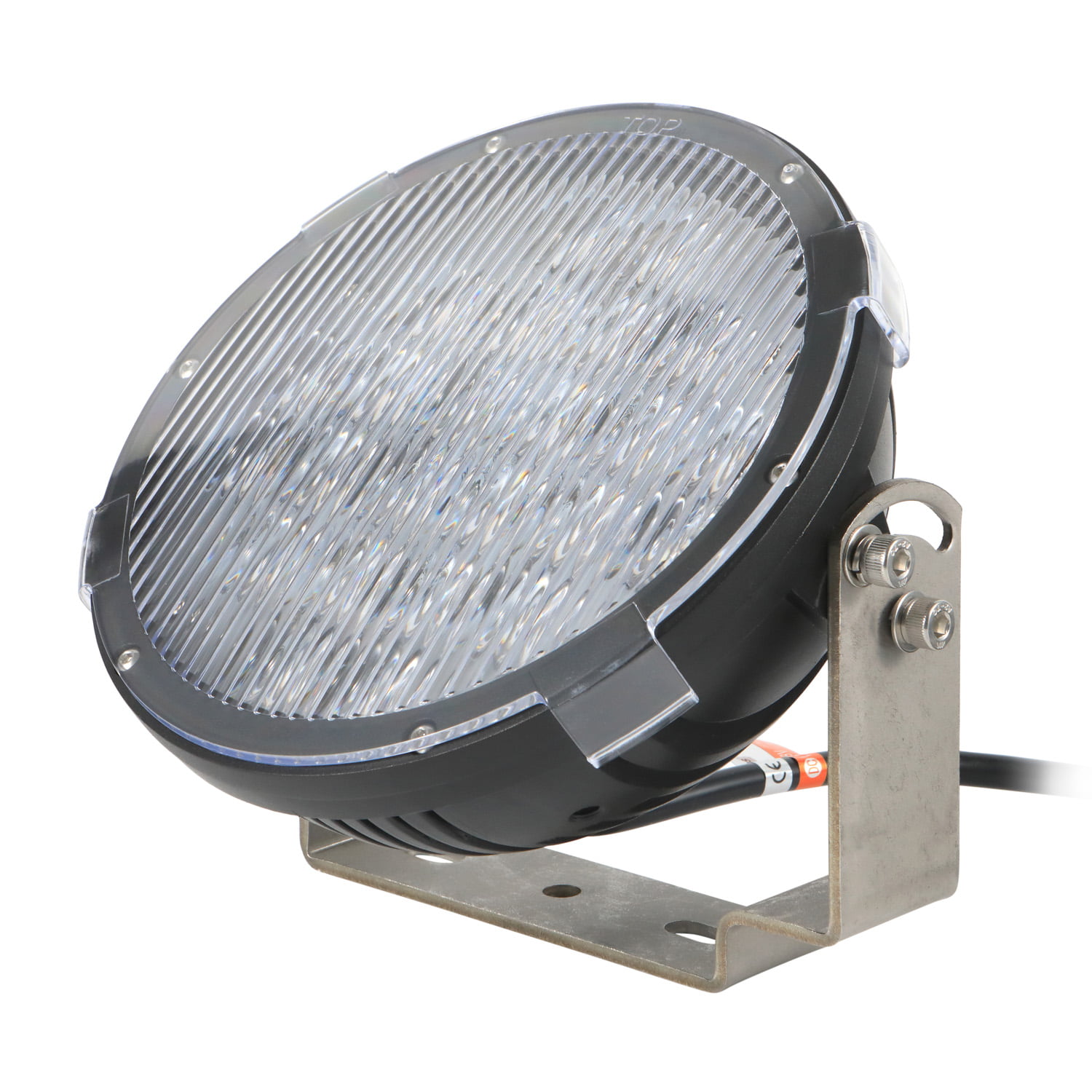

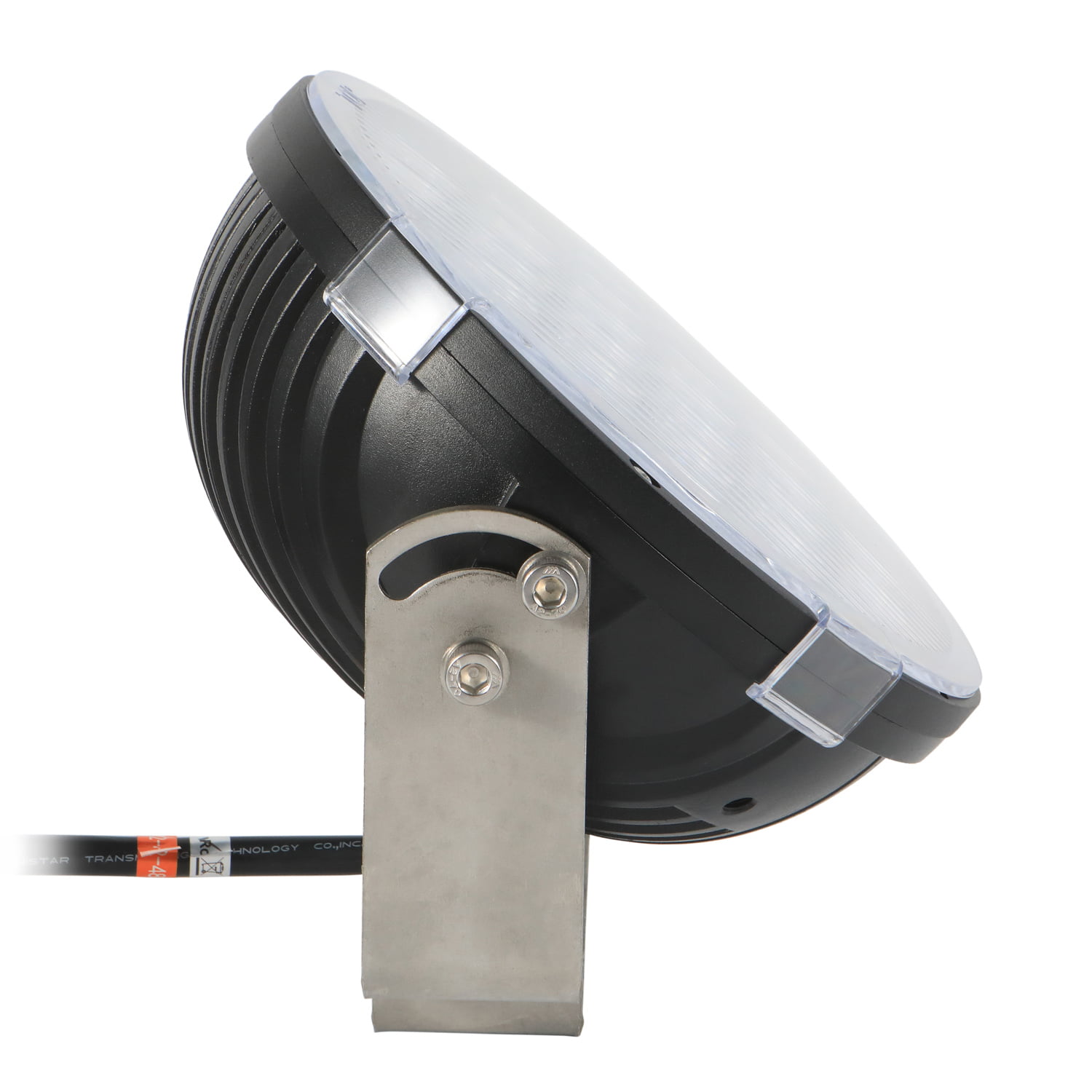

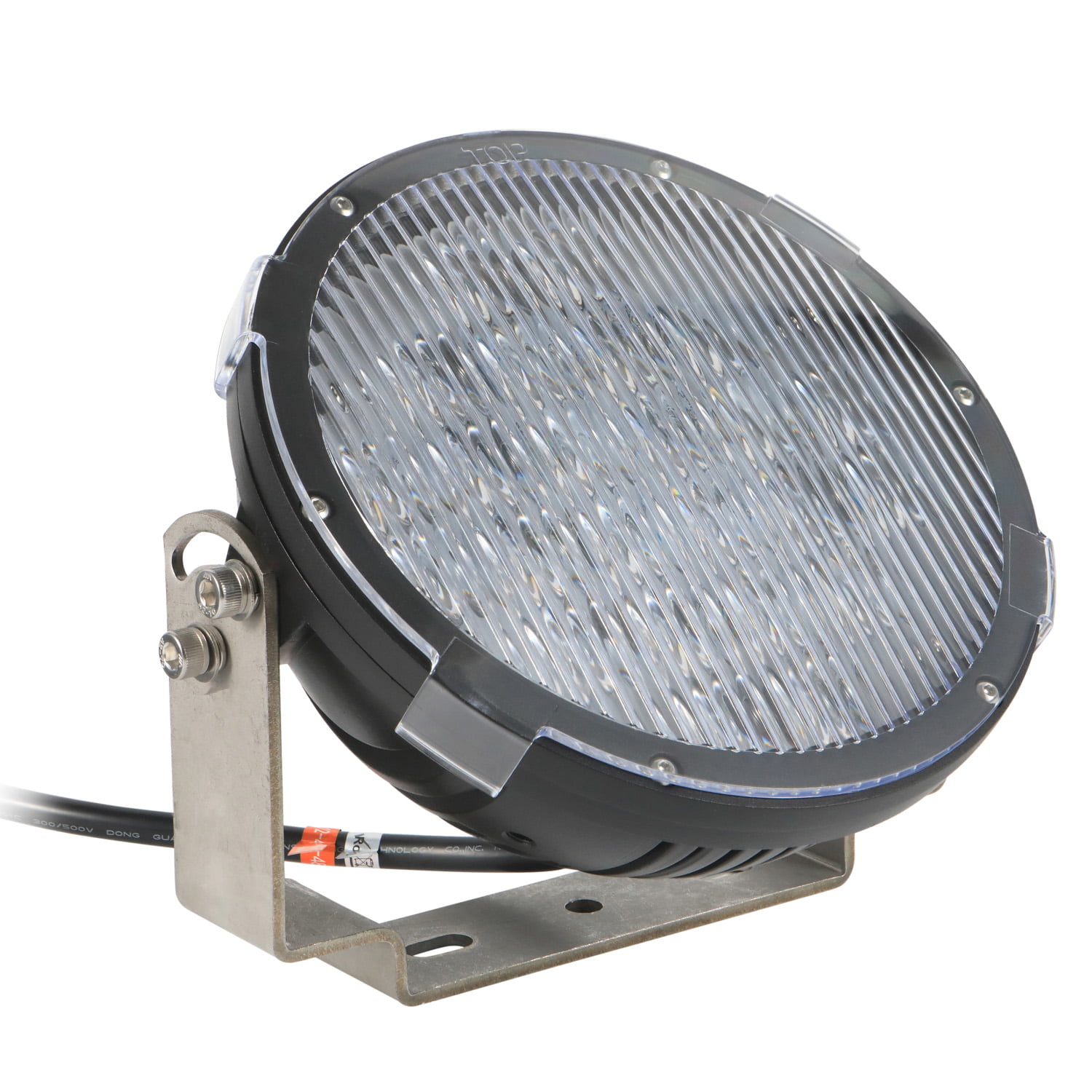

Crane Warning Light1
Industrial crane warning light series for projecting visible safety lines, zones or warning indicators around overhead crane and suspended-load operating areas.
Power Output
72W/120W
Input Voltage
12-24VDC
Typical Height
3-8M
Protection
IP65 Rated
Application Engineering Note
Projection visibility is determined by mounting height, ambient lux, lens optic selection, and floor reflectivity. SNT provides exact Gobo pattern sizing and optical validation prior to pilot deployment.
Engineering Parameters
Technical Specifications & Optical Sizing
All measurements verified at 25°C ambient conditions.
Standard Parameters Verified Values
- Rated Output
- 72w/120w
- Operating Voltage
- 12-24VDC
- Optimum Projection Distance
- 3-8M
- Standard Lens Angle
- 45°
- Light Source
- LED
- IP Rating
- 65
- Voltage
- 12 V
Environmental & Compliance Industrial Grade
- Ingress Protection
- IP65 (Dust-tight & Water Jet Protected)
- Operating Temperature
- -20°C to +50°C
- Housing Material
- Die-cast Aluminum Alloy 6063
- Optical Glass
- High-Transmittance Coated Quartz Lens
Detailed Description & Functional Overview
Crane Warning Light Series
The SNT Crane Warning Light Series is designed to improve visual awareness around overhead cranes, suspended loads and crane operating zones. Depending on the selected configuration, the system can project visible warning lines, zones or indicators onto the floor to help workers recognize crane movement and hazardous areas.Typical Applications
- Overhead crane operating zones
- Suspended load hazard areas
- Crane travel path visibility
- Hook and load position awareness
- Factory and warehouse lifting areas
How It Works
The warning light is mounted on the crane structure or another suitable installation point and projects a visible safety marking onto the floor below. The projected warning moves with the crane or load position, helping workers identify the active hazard area.Configuration Options
- Line, spot or custom warning projection depending on application
- Multiple power and optical configurations
- Different mounting heights and projection distances
- Optional sensor, controller or external signal integration
- OEM / private label customization available
Site Information Required for Selection
For the correct configuration, please provide the installation height, projection distance, ambient light level, required warning size or line length, floor surface, operating environment and any trigger/control requirements.Important Application Note
Crane warning lights are visual warning devices intended to improve hazard visibility. They do not replace required workplace risk assessment, physical separation, operating procedures, training or other mandatory safety controls. Final performance should be validated under actual site conditions before large-scale deployment.Request a Recommendation
Send SNT your crane height, site photo or drawing, ambient lighting conditions and required warning area. We can recommend a suitable configuration for pilot testing.
System Integration
Compatible Safety Solutions
Application Sizing & Pilot Request
Configure this system for your facility.
SNT recommends projection models based on your exact ceiling height, ambient lux, floor surface, and safety message requirement. Submit your data for an application review.
Pilot Validation Process
- 01. Parameter evaluation & optical simulation
- 02. Tailored pilot unit shipment with chosen gobo
- 03. On-site visibility test & pilot pass decision
- 04. Standardized bulk deployment & replication
